The Leat Project

Design Plans Page 3

Monument Pond
Collection Area Outlet No.2 to Leat

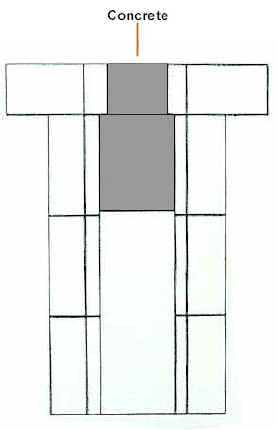

Plan

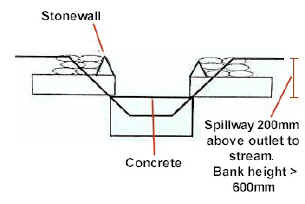

Side

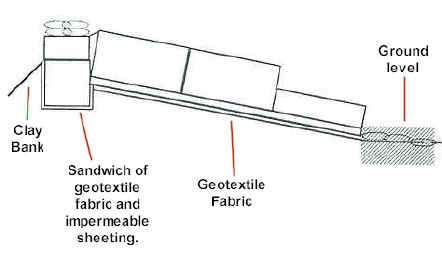

Front

Schematic diagrams - not drawn to scale
